Spot text

MapReader implements three new frameworks for spotting text on maps:

  • DPTextDETRRunner - This is used to detect text on maps using DPTextDETR and outputs bounding boxes and scores.

  • DeepSoloRunner - This is used to detect and recognize text on maps using DeepSolo and outputs bounding boxes, text and scores.

  • MapTextPipeline - This is used to detect and recognize text on maps using MapTextPipeline and outputs bounding boxes, text and scores.

We recommend using the MapTextPipeline for most use cases as it has been used to train a model on a sample of David Rumsey maps and so should work best for map text spotting.

Install dependencies

To run text spotting with MapReader, you will need to install the required dependencies. These are listed below:

Note

We have our own forks of the DPTextDETRRunner, DeepSolo and MapTextPipeline repos to enable them to work on CPU. Please use our forks but remember to cite the original authors in your work!

Detectron2

Detectron2 is a popular object detection library built by Facebook AI Research. The main repo is available here.

To install, run the following commands in your terminal:

git clone https://github.com/facebookresearch/detectron2.git
cd detectron2
pip install .

Detectron2 issues for windows users

If you are on a windows machine and are having trouble installing Detectron2, you can try the following: - Install Visual Studio Build Tools. - Follow instructions here to install the required packages. (The format might be different in newer versions of Visual Studio Build Tools, so you might need to look up the specific package names.)

Once this is done, retry installing Detectron2.

You should then pick one of the following to install:

Note

Since the DPText-DETR, DeepSolo and MapTextPipeline frameworks are built on top of AdelaiDet, you won’t be able to install them at the same. To get around this, you can set up three different conda environments, one for each framework. This will allow you to switch between them as needed.

DPTextDETR

Our fork for DPText-DETR is available here.

To install, run the following commands in your terminal:

git clone https://github.com/rwood-97/DPText-DETR.git
cd DPText-DETR
pip install .

DeepSolo

Our fork for DeepSolo is available here

To install, run the following commands in your terminal:

git clone https://github.com/rwood-97/DeepSolo.git
cd DeepSolo
pip install .

MapTextPipeline

Our fork for MapTextPipeline is available here

To install, run the following commands in your terminal:

git clone https://github.com/rwood-97/MapTextPipeline.git
cd MapTextPipeline
pip install .

Advice for patch size

When running the text spotting models, we recommend using a patch size of 1024x1024 pixels. This is the size used as input to the models, and so should give the best results.

You may also want to create some overlap between your patches as this should minimise cut off text at the edges of patches. MapReader has an algorithm to deduplicate overlapping bounding boxes so this creating an overlap will enable the fullest text to be detected. You will need to experiment with the amount of overlap to find the best results for your maps.

Note

Greater overlaps will create more patches and result in greater computational costs when running.

See the Load user guide for more information on how to create patches.

Set-up the runner

Once you have installed the dependencies, you can set up your chosen “runner”.

You will need to choose a model configuration and download the corresponding model weights.

  • Config files can be found in the DPText-DETR, DeepSolo and MapTextPipeline repositories under the configs directory.

  • Weights files should be downloaded from the github repositories (links to the downloads are in the README).

e.g. for the DPTextDETRRunner, if you choose the “ArT/R_50_poly.yaml”, you should download the “art_final.pth” model weights file from the DPTextDETR repo.

e.g. for the DeepSoloRunner, if you choose the “R_50/IC15/finetune_150k_tt_mlt_13_15_textocr.yaml”, you should download the “ic15_res50_finetune_synth-tt-mlt-13-15-textocr.pth” model weights file from the DeepSolo repo.

e.g. for the MapTextPipeline, if you choose the “ViTAEv2_S/rumsey/final_rumsey.yaml”, you should download the “rumsey-finetune.pth” model weights file from the MapTextPipeline repo.

Note

We recommend using the “ViTAEv2_S/rumsey/final_rumsey.yaml” configuration and “rumsey-finetune.pth” weights from the MapTextPipeline. But you should choose based on your own use case.

For the DPTextDETRRunner, use:

from map_reader import DPTextDETRRunner

#EXAMPLE
my_runner = DPTextDETR(
    "./patch_df.csv",
    "./parent_df.csv",
    cfg_file = "DPText-DETR/configs/DPText_DETR/ArT/R_50_poly.yaml",
    weights_file = "./art_final.pth",
)

or, if you have your patch_df and parent_df already loaded as pandas dataframes, you can use:

#EXAMPLE
my_runner = DPTextRunner(
    patch_df,
    parent_df,
    cfg_file = "DPText-DETR/configs/DPText_DETR/ArT/R_50_poly.yaml",
    weights_file = "./art_final.pth",
)

For the DeepSoloRunner, use:

from map_reader import DeepSoloRunner

#EXAMPLE
my_runner = DeepSoloRunner(
    "./patch_df.csv",
    "./parent_df.csv",
    cfg_file = "DeepSolo/configs/R_50/IC15/finetune_150k_tt_mlt_13_15_textocr.yaml",
    weights_file = "./ic15_res50_finetune_synth-tt-mlt-13-15-textocr.pth"
)

or, if you have your patch_df and parent_df already loaded as pandas dataframes, you can use these directly as shown for the DPTextDETRRunner (above).

For the MapTextPipeline, use:

from map_reader import MapTextPipeline

#EXAMPLE
my_runner = MapTextPipeline(
    "./patch_df.csv",
    "./parent_df.csv",
    cfg_file = "MapTextPipeline/configs/ViTAEv2_S/rumsey/final_rumsey.yaml",
    weights_file = "./rumsey-finetune.pth"
)

or, if you have your patch_df and parent_df already loaded as pandas dataframes, you can use these directly as shown for the DPTextDETRRunner (above).

Note

You’ll need to adjust the paths to the config and weights files to match your own set-up!

By default, the runners will set the device to “cuda” if available, otherwise it will use “cpu”. You can explicitly set this using the device argument:

#EXAMPLE
my_runner = MapTextPipeline(
    "./patch_df.csv",
    "./parent_df.csv",
    cfg_file = "MapTextPipeline/configs/ViTAEv2_S/rumsey/final_rumsey.yaml",
    weights_file = "./rumsey-finetune.pth",
    device = "cuda",
)

Run the runner

You can then run the runner on all patches in your patch dataframe:

patch_preds = my_runner.run_all()

By default, this will return a dictionary containing all the predictions for each patch. If you’d like to return a dataframe instead, use the return_dataframe argument:

patch_preds_df = my_runner.run_all(return_dataframe=True)

MapReader will automatically run a deduplication algorithm to remove overlapping bounding boxes, based on a minimum intersection of area (IoA) for each overlapping polygon. If two polygons overlap with intersection over area greater than the minimum IoA, the the one with the lower IoA will be kept (i.e. the larger of the two polygons).

Below are two examples of this:

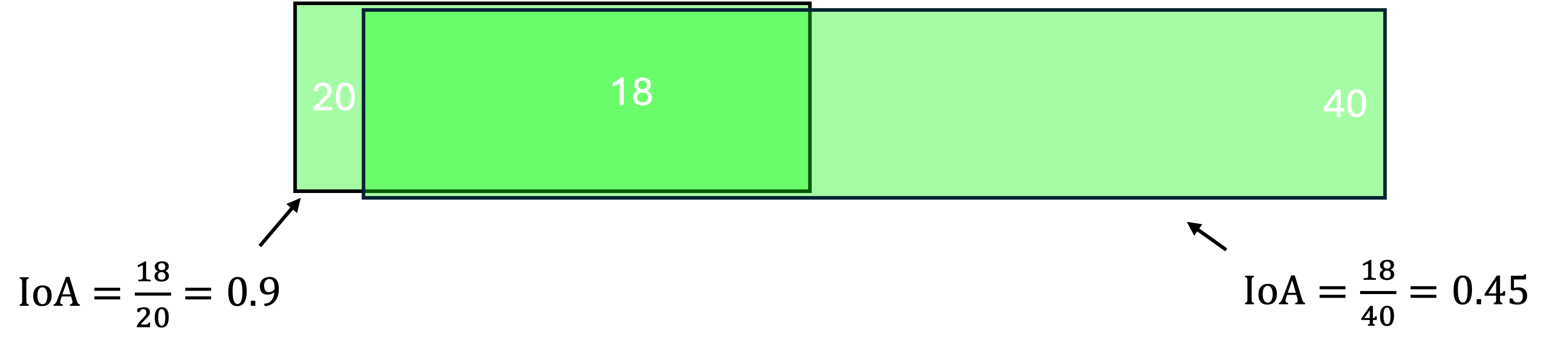

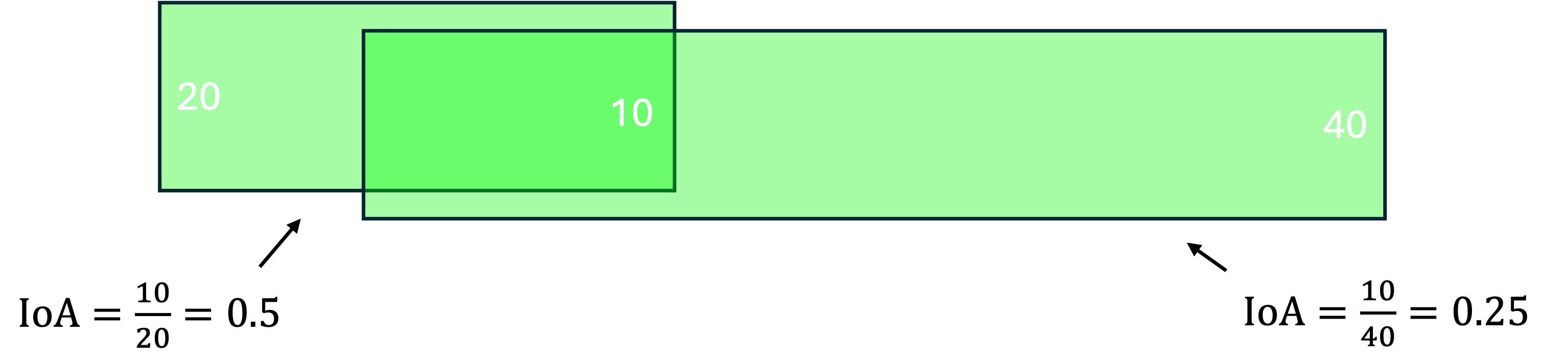

../../_images/IoA.png ../../_images/IoA_0.9.png

By default, the minimum IoA is set to 0.7 so the deduplication algorithm will only remove the smaller polygon in the second example.

You can adjust the minimum IoA by setting the min_ioa argument:

patch_preds_df = my_runner.run_all(return_dataframe=True, min_ioa=0.9)

Higher ``min_ioa``values will mean a tighter threshold for identifying two polygons as duplicates.

If you’d like to run the runner on a single patch, you can also just run on one image:

patch_preds = my_runner.run_on_image("path/to/your/image.png", min_ioa=0.7)

Again, this will return a dictionary by default but you can use the return_dataframe argument to return a dataframe instead.

To view the patch predictions, you can use the show method. This takes an image ID as an argument, and will show you all the predictions for that image:

#EXAMPLE
my_runner.show(
    "patch-0-0-1000-1000-#map_74488689.png#.png"
)

By default, this will show the image with the bounding boxes drawn on in red and text in blue. You can change these by setting the border_color and text_color arguments:

my_runner.show(
    "patch-0-0-1000-1000-#map_74488689.png#.png",
    border_color = "green",
    text_color = "yellow",
)

You can also change the size of the figure with the figsize argument.

Scale-up to whole map

Once you’ve got your patch-level predictions, you can scale these up to the parent image using the convert_to_parent_pixel_bounds method:

parent_preds = my_runner.convert_to_parent_pixel_bounds()

This will return a dictionary containing the predictions for the parent image. If you’d like to return a dataframe instead, use the return_dataframe argument:

parent_preds_df = my_runner.convert_to_parent_pixel_bounds(return_dataframe=True)

If you have created patches with overlap, then you should deduplicate at the parent level as well. You can do this by setting the deduplicate argument and passing a min_ioa value:

parent_preds_df = my_runner.convert_to_parent_pixel_bounds(return_dataframe=True, deduplicate=True, min_ioa=0.7)

This will help resolve any issues with predictions being cut-off at the edges of patches since the overlap should help find the full piece of text.

Again, to view the predictions, you can use the show method. You should pass a parent image ID as the image_id argument:

#EXAMPLE
my_runner.show(
    "map_74488689.png"
)

As above, use the border_color, text_color and figsize arguments to customize the appearance of the image.

my_runner.show(
    "map_74488689.png",
    border_color = "green",
    text_color = "yellow",
    figsize = (20, 20),
)

You can then save these predictions to a csv file:

parent_preds_df.to_csv("text_preds.csv")

Geo-reference

If you maps are georeferenced in your parent_df, you can also convert the pixel bounds to georeferenced coordinates using the convert_to_coords method:

geo_preds_df = my_runner.convert_to_coords(return_dataframe=True)

Again, you can save these to a csv file as above, or, you can save them to a geojson file for loading into GIS software:

my_runner.save_to_geojson("text_preds.geojson")

This will save the predictions to a geojson file, with each text prediction as a separate feature.
